Multi-Split Aircond: One Outdoor Unit, Multiple Indoor Units — Complete Guide
Multi-split systems cool 2-5 rooms from a single outdoor unit. Learn the pros, cons, costs, and when multi-split is the smart choice for Malaysian homes and offices.
What Is a Multi-Split Aircond System?

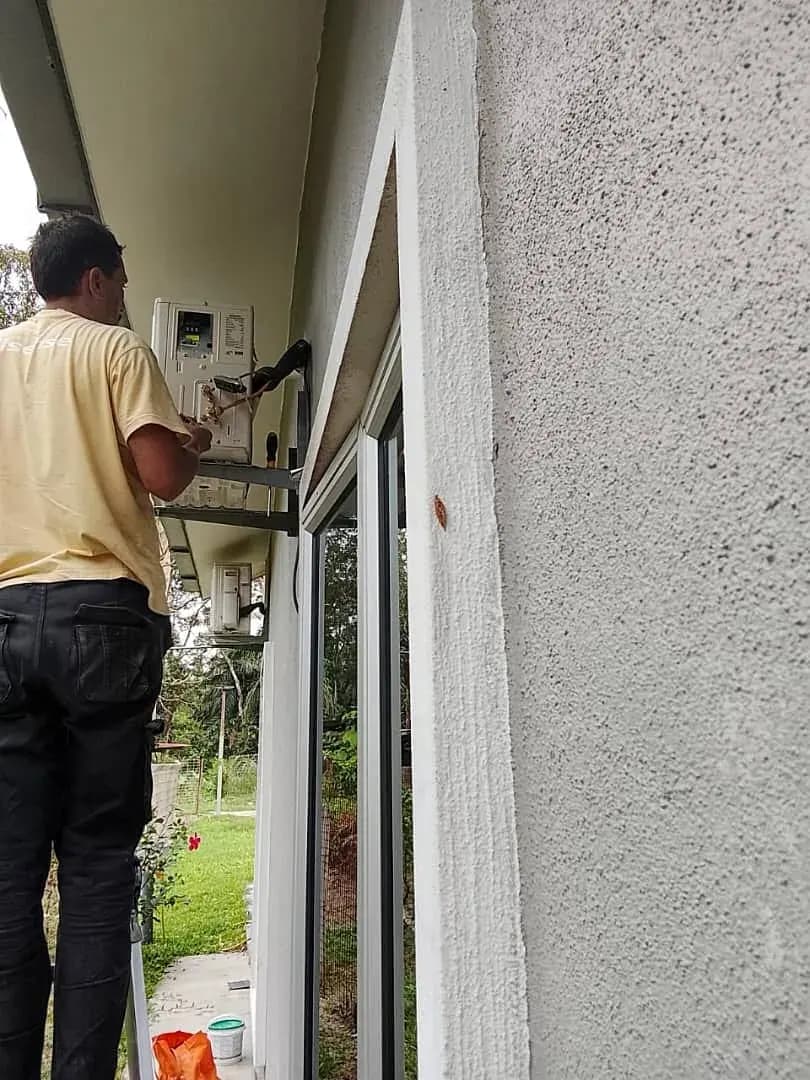

A multi-split system connects 2-5 indoor units to a single outdoor condenser unit. Each indoor unit operates independently — you can cool just one room or all rooms simultaneously. Our installation specialists explain when multi-split makes sense for Malaysian homes.
Multi-Split vs Multiple Single Splits
| Factor | Multi-Split (1 outdoor, 3 indoor) | 3× Single Split (3 outdoor, 3 indoor) |
|---|---|---|
| Outdoor units | 1 | 3 |
| Outdoor space needed | Minimal — one position | 3 positions needed |
| Visual impact | Low | High |
| Installation cost | RM 1,800-3,500 (installed) | RM 1,500-2,500 (installed) |
| Unit cost | Higher (specialized system) | Lower (standard units) |
| Energy efficiency | High (inverter, load sharing) | High (each independent) |
| Individual control | Yes — each room independent | Yes |
| Failure impact | All rooms lose cooling if outdoor fails | Only affected room loses cooling |
| Best for | Condos with limited outdoor space | Landed homes with space |
When Multi-Split Is the Smart Choice
- Condo with one AC ledge — building only allows one outdoor unit position
- Limited balcony space — can't fit 2-3 separate outdoor units
- Aesthetic priority — one outdoor unit is much less visually intrusive
- New construction — pipes can be pre-installed during building phase
- Noise sensitivity — one compressor is quieter than three running simultaneously
When Individual Splits Are Better
- Landed homes with space — each outdoor unit has its own wall/ledge
- Redundancy priority — if one outdoor fails, other rooms still cool
- Budget focus — individual splits are 15-25% cheaper total installed cost
- Phased installation — install one room now, add more later
Multi-Split Configurations Available
| Configuration | Indoor Units | Outdoor HP | Estimated Installed Cost |
|---|---|---|---|
| Dual split | 2 × 1.0 HP | 3.0 HP | RM 3,500-5,000 |
| Triple split | 3 × 1.0 HP | 4.0 HP | RM 5,000-7,500 |
| Quad split | 4 × 1.0 HP | 5.0 HP | RM 7,000-10,000 |
| Mixed capacity | 1 × 1.5 HP + 2 × 1.0 HP | 4.0 HP | RM 5,500-8,000 |
Note: Prices include units + installation. Actual cost varies by brand and pipe length.
Installation Considerations
- Larger outdoor unit — multi-split condensers are bigger and heavier than single units
- More pipe runs — each indoor unit needs its own copper pipe pair to the outdoor unit
- Higher electrical demand — may need dedicated 30-40A MCB circuit
- Longer installation time — 6-8 hours for triple split vs 2-3 hours for single
- Brand matching — all indoor units must be same brand as outdoor (Daikin with Daikin, etc.)
Energy Efficiency Reality
Modern inverter multi-split systems are highly efficient because:
- The outdoor compressor adjusts output to match actual demand
- Running 2 indoor units uses less energy than 2 separate outdoor compressors
- When only 1 room needs cooling, the compressor runs at partial load — very efficient
However, if all rooms run simultaneously at full capacity, a multi-split uses similar energy to individual units.
Get Expert Multi-Split Advice
Our top-rated installation team will assess your home and recommend the optimal configuration — multi-split, individual splits, or a mix of both. WhatsApp +60 18-298 3573 with your floor plan or room count for a free consultation.
Definitions
Key terms in this guide, explained
Short, plain-language definitions of the terms used above — written by the technicians who do the work, not copied from a manufacturer brochure.
What does the compressor actually do?
The compressor sits in the outdoor unit and pumps refrigerant around the loop, raising its pressure so it can dump heat outside. It is the single most expensive component in the system. Most compressor failures are secondary — caused by running low on gas, a failed capacitor, a choked condenser coil or long-term voltage stress rather than by the compressor itself wearing out.
Compressor replacement is quoted from RM 800 – 2,000 — on a unit past 8 years old, compare that against a new install before approving it.
Inverter aircond — what is the actual saving mechanism?
An inverter aircond varies compressor speed instead of switching it fully on and off. Once the room reaches the set temperature the compressor slows to a trickle rather than stopping, which holds the temperature steadier and avoids the heavy current spike of every restart. That is where the electricity saving comes from — it is a control difference, not a stronger cooling capacity.
Inverter savings only show up on units that run for hours at a time. A living-room unit switched on for 45 minutes will not pay back the price difference.
What is the HP rating on an aircond?
HP is the informal Malaysian shorthand for cooling capacity, carried over from compressor horsepower. In practice 1.0 HP ≈ 9,000 BTU/h, 1.5 HP ≈ 12,000 BTU/h, 2.0 HP ≈ 18,000 BTU/h and 2.5 HP ≈ 24,000 BTU/h. Service, chemical wash and installation prices are all quoted against these bands, which is why the technician asks for HP before quoting.
HP is printed on the indoor unit's side label and on the outdoor nameplate — check there rather than guessing from room size.
Side-by-side comparison
Condo vs landed installation: what does access change?
The equipment is the same. Access, approvals and pipe runs are what change the day — and the price.
| What to compare | Condominium / high-rise | Landed house |
|---|---|---|
| Approval needed | JMB / management permit, often a deposit | None beyond the owner's consent |
| Outdoor unit position | Fixed ledge or designated aircond bay | Flexible — shaded side wall or ground frame |
| Typical pipe run | Longer, sometimes across a corridor | Short and direct |
| Working-hour limits | Drilling windows set by management | Neighbour courtesy only |
In short: In a condo, secure the management permit and the service-lift booking before the technician is dispatched; in a landed house, spend that effort on choosing a shaded, serviceable outdoor position instead.
Quick answer
KL Renovator's practical answer: Multi-split systems cool 2-5 rooms from a single outdoor unit. Learn the pros, cons, costs, and when multi-split is the smart choice for Malaysian homes and offices.
Reader FAQs
What Is a Multi-Split Aircond System?
A multi-split system connects 2-5 indoor units to a single outdoor condenser unit. Each indoor unit operates independently — you can cool just one room or all rooms simultaneously. Our installation specialists explain when multi-split makes sense for Malaysian homes.
