Split Unit vs Window Unit Installation — Which Is Better for Malaysian Homes?
Comparing split unit and window unit aircond installation: cost, cooling performance, noise, aesthetics, and which type suits your home best. Expert comparison from 500+ installations.
Split Unit or Window Unit — Which Should You Install?
Choosing between a split unit and a window unit is one of the first decisions homeowners face. Our installation specialists have installed both types across hundreds of Malaysian homes — here's an honest comparison to help you decide.
Quick Comparison Table
| Factor | Split Unit (Wall-Mounted) | Window Unit |
|---|---|---|
| Installation cost | From RM 199 | From RM 199 |
| Unit price range | RM 900-3,500 | RM 500-1,500 |
| Installation time | 2-3 hours | 1-1.5 hours |
| Noise level | Very quiet (19-35 dB) | Moderate (40-55 dB) |
| Cooling efficiency | High (inverter models) | Moderate |
| Aesthetics | Sleek indoor unit, hidden outdoor | Visible box in window |
| Maintenance access | Easy filter access | May need partial removal |
| Lifespan | 10-15 years | 7-10 years |
| Best for | Bedrooms, living rooms, offices | Rental properties, budget cooling |
When to Choose a Split Unit
- Bedrooms and living rooms — quieter operation (19 dB on low) means undisturbed sleep
- Energy efficiency priority — inverter split units use 30-50% less electricity than window units
- Aesthetics matter — sleek indoor panel blends with décor, outdoor unit hidden on ledge or balcony
- Long-term investment — 10-15 year lifespan with proper maintenance
- Multiple rooms — multi-split systems can cool 2-4 rooms from one outdoor unit
When to Choose a Window Unit
- Rental properties — lower upfront cost, easy to remove when moving out
- Budget cooling — unit price 40-60% cheaper than equivalent split unit
- Quick installation — 1-1.5 hours vs 2-3 hours for split unit
- Older buildings with window slots — some pre-war shoplots and older flats have built-in window unit spaces
- Temporary cooling — ideal for short-term needs (renovation period, temporary office)
Installation Differences
Split Unit Installation (2-3 hours)

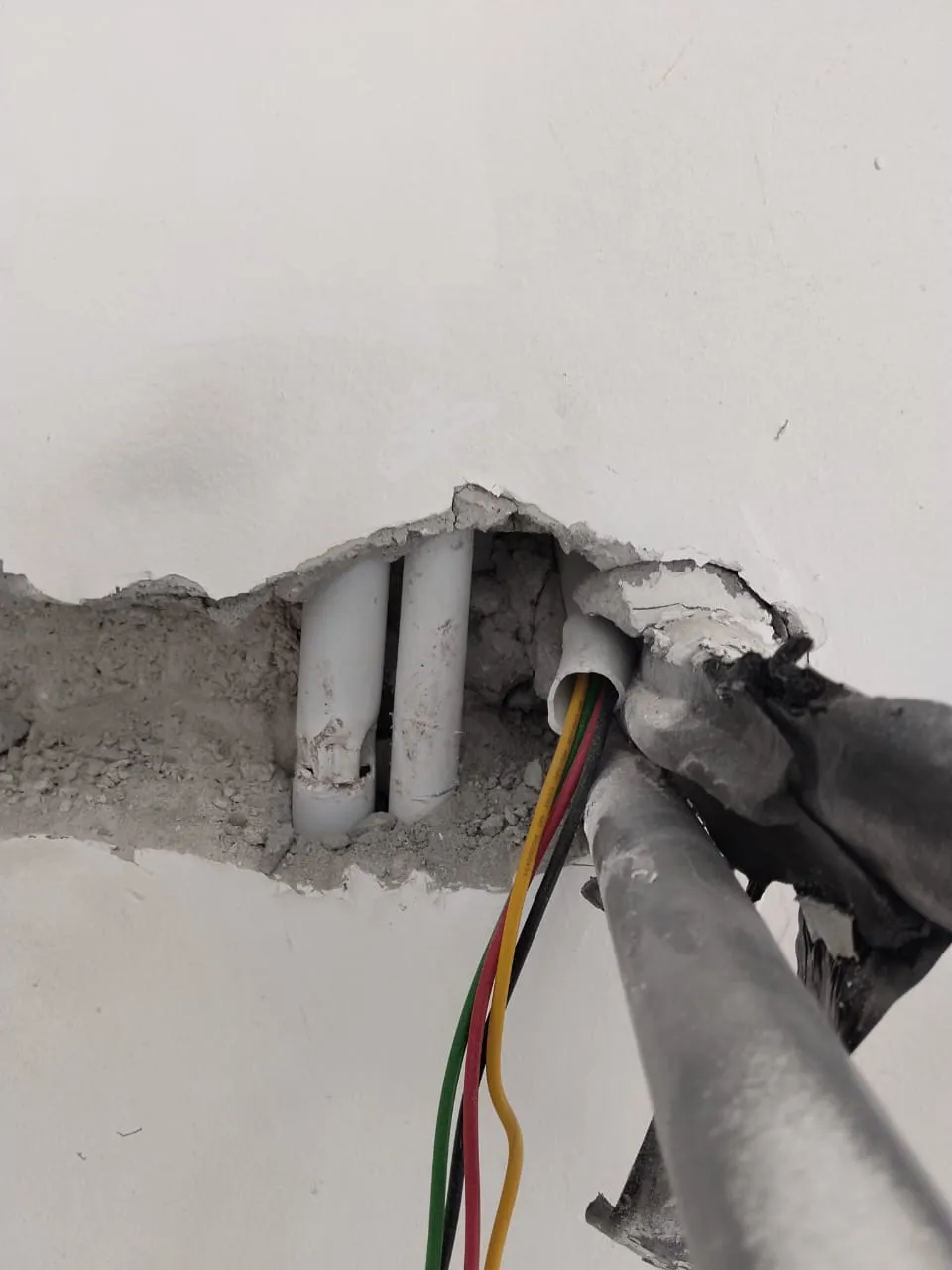

Our wall-mounted installation includes: indoor unit bracket, copper pipe routing, electrical wiring, drain pipe, outdoor unit placement, vacuum evacuation, and commissioning. Requires wall drilling for pipe passage.
Window Unit Installation (1-1.5 hours)
Our window unit installation includes: secure mounting in window frame, weatherproof sealing, electrical connection, and testing. Simpler process but needs a suitable window opening.
Electricity Cost Comparison
Running 8 hours daily for 30 days at TNB residential tariff:
- 1.5 HP Inverter Split: ~RM 80-100/month
- 1.5 HP Non-Inverter Split: ~RM 120-150/month
- 1.5 HP Window Unit: ~RM 140-180/month
Over 5 years, an inverter split unit saves RM 2,000-4,000 in electricity vs a window unit — more than covering the higher upfront cost.
Our Recommendation
For most Malaysian homeowners, a split unit is the better long-term investment — quieter, more efficient, longer-lasting, and better looking. Window units make sense for rental properties, tight budgets, or temporary needs.
Both types installed from RM 199 by our top-rated installation team. WhatsApp +60 18-298 3573 for advice on which type suits your home.
Definitions
Key terms in this guide, explained
Short, plain-language definitions of the terms used above — written by the technicians who do the work, not copied from a manufacturer brochure.
MEPS — what is the scheme, and who runs it?
MEPS is Malaysia's Minimum Energy Performance Standards scheme, administered by the Energy Commission. Air conditioners sold here carry a star label — more stars means less electricity for the same cooling. The label is a comparison tool between models of the same capacity; it says nothing about how your unit performs once the coil is dirty or the room is oversized.
Read the star label together with the annual kWh figure printed on it — that number is what turns into ringgit on your TNB bill.
MCB and isolator — what are they protecting?
The isolator is the local switch that cuts power to one aircond so a technician can work on it safely; the MCB is the circuit breaker in the distribution board that protects that circuit against overload and short circuit. Each unit should sit on a correctly rated circuit — sharing a lighting circuit or running off an extension lead is both a nuisance-trip and a fire risk.
Repeated tripping is a wiring or capacity problem to investigate, never something to fix by resetting the breaker harder.
What is vacuum-down, and why is it skipped?
Before the refrigerant valves are opened, the installer connects a vacuum pump to the service port and pulls the air and moisture out of the new copper line set. Air left in the pipe carries water vapour, which reacts with compressor oil and forms acid that eats the windings from inside. It is the step most often skipped on a rushed installation because nothing looks different afterwards.
Ask to see the gauge during vacuum-down; a proper job holds the vacuum for several minutes after the pump stops.
Side-by-side comparison
Window unit vs split system: what is the practical difference?
Window units still make sense in older walk-ups and rentals where no outdoor bracket is allowed.
| What to compare | Window unit | Split system |
|---|---|---|
| Installation | Single opening, no copper run | Indoor + outdoor, piping and drainage route |
| Noise in the room | Compressor sits in the room opening | Compressor is outside |
| Efficiency options | Limited, mostly fixed speed | Full inverter range |
| Published chemical wash | RM 130 | RM 120 |
In short: If the building allows an outdoor unit, split wins on noise and efficiency. If it does not, a window unit properly sealed into the opening is still a valid answer.
Quick answer
KL Renovator's practical answer: Comparing split unit and window unit aircond installation: cost, cooling performance, noise, aesthetics, and which type suits your home best. Expert comparison from 500+ installations.
Reader FAQs
Split Unit or Window Unit — Which Should You Install?
Choosing between a split unit and a window unit is one of the first decisions homeowners face. Our installation specialists have installed both types across hundreds of Malaysian homes — here's an honest comparison to help you decide.
